20 mm steering head ``lightweight´´ plate with single clamp Please choose your offset, fork leg distance and forkdiameter in millimeter. The steering tube diameter usually is 22 mm. Click on additional information below for a drawing with all relevant dimensions. Additional wishes can be realized only after prior consultation

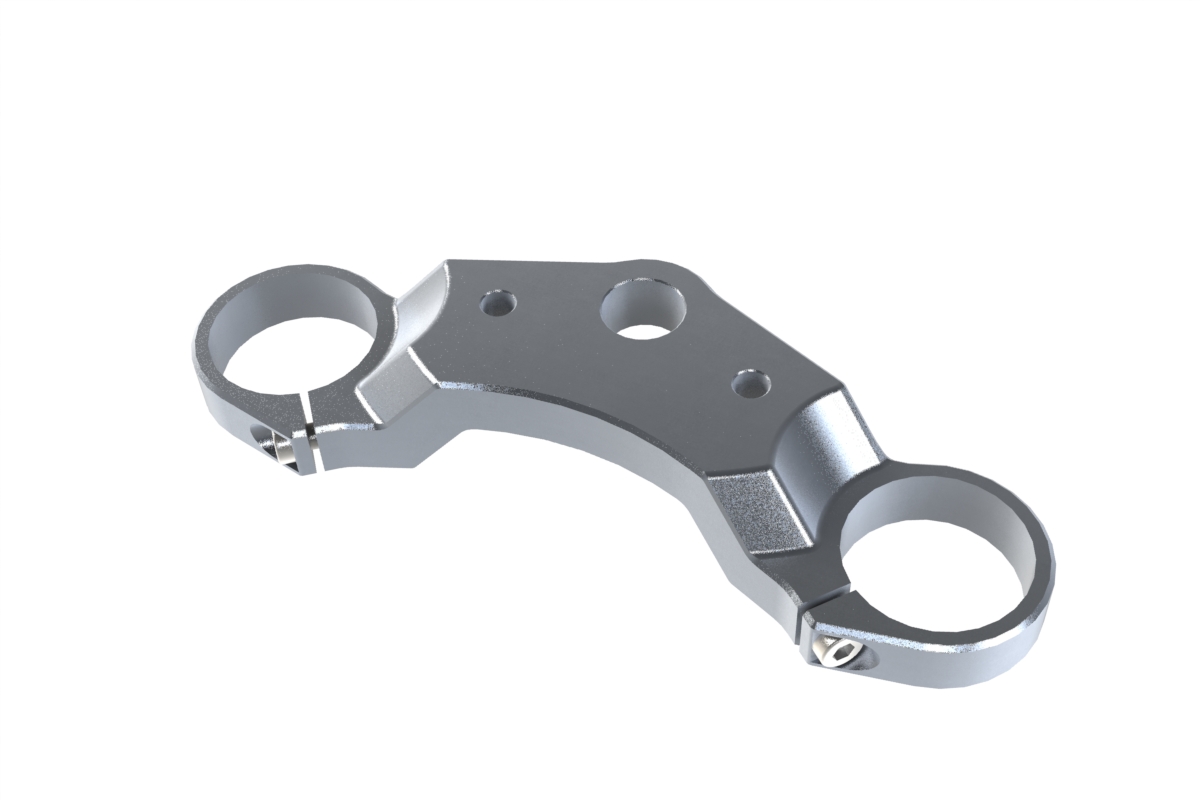

20 mm steering head plate with single clamp, for superbike handle bar riser Please choose your offset, fork leg distance and forkdiameter in millimeter. The steering tube diameter usually is 22 mm. Click on additional information below for a drawing with all relevant dimensions. Additional wishes can be realized only after prior consultation

30 mm steering head ``lightweight´´ plate with single clamp Please choose your offset, fork leg distance and forkdiameter in millimeter. Click on additional information below for a drawing with all relevant dimensions. Additional wishes can be realized only after prior consultation

30 mm steering head plate with single clamp, for superbike handle bar riser Please choose your offset, fork leg distance and forkdiameter in millimeter. The steering tube diameter usually is 22 mm. Click on additional information below for a drawing with all relevant dimensions. Additional wishes can be realized only after prior consultation

30 mm steering head plate with single clamp and with 10 mm crank Please choose your offset, fork leg distance and forkdiameter in millimeter. The steering tube diameter usually is 22 mm. Click on additional information below for a drawing with all relevant dimensions. Additional wishes can be realized only after prior consultation

30 mm steering head plate with single clamp and with 10 mm crank, Addiding a set of handlebar clamps of your choice. Please choose your offset, fork leg distance and forkdiameter in millimeter. The steering tube diameter usually is 22 mm. Click on additional information below for a drawing with all relevant dimensions. Additional wishes can be realized only after prior consultation

40 mm steering head plate with single clamp and with 20 mm crank, Addiding a set of handlebar clamps of your choice. Please choose your offset, fork leg distance and forkdiameter in millimeter. The steering tube diameter usually is 22 mm. Click on additional information below for a drawing with all relevant dimensions. Additional wishes can be realized only after prior consultation tion.

Aluminium steering bearing adjuster nuts made from high grade aircraft aluminium. CNC machined in Germany. Avaiable in different versions. Different sizes avaiable. Surface anodised.

Beautifully shaped, closed steering head nut made of aluminium. Made of high-strength 7075 T6 aircraft aluminium on modern CNC machines - Made in Germany. Suitable for high-strength torques. No cheap "China goods". The head nut is available in many anodised colours. Thread: M25x1   Milled from the solid Aluminium 7075 T6 Available in anodised colours: black, titanium, silver, red and blue. Made in Germany

Beautifully shaped, closed steering head nut made of aluminium. Made of high-strength 7075 T6 aircraft aluminium on modern CNC machines - Made in Germany. Suitable for high-strength torques. No cheap "China goods". The head nut is available in many anodised colours. Thread: M28x1   Milled from the solid Aluminium 7075 T6 Available in anodised colours: black, titanium, silver, red and blue. Made in Germany

CNC machined, aluminium steering angle limiter in excentric design. Allows a wide adjustment of the steering head angle. Fits most of out triple clamps. Also to use on your own triple clamps. Dimensions: Diameter 15mm, height 12mm, bolt M6 Contains 1 piece. For a triple clamp you need 2 pieces. Avaible in silber or black anodised. Other colors on request.

CNC machined, aluminium steering angle limiter in excentric design. Allows a wide adjustment of the steering head angle. Fits most of out triple clamps. Also to use on your own triple clamps. Dimensions: Diameter 19 mm, height 12 mm, bolt M8 Contains 1 pcs with bolt. For a triple clamp you need 2 pieces. Avaible in silber or black anodised. Other colors on request.

CNC machined, aluminium steering angle limiter in excentric design. Allows a wide adjustment of the steering head angle. Fits most of out triple clamps. Also to use on your own triple clamps. Dimensions: Diameter 19 mm, height 18 mm, bolt M8 Contains 1 pcs with bolt. For a triple clamp you need 2 pieces. Avaible in silber or black anodised. Other colors on request.

Upprice for anodisation of custom made triple clamps. Avaiable colours are black, silber, red, gold, blue and titanium colour.

Der Aufpreis bezieht sich auf das Eloxieren von einer unteren Gabelbrücke incl. Lenkrohr.

CNC machined billet aluminium handlebar clamps 'Classic' for 22 or 28 mm bars Fully CNC machined handlebar risers for 22 mm or conical 28.6 mm diameter handlebars like e.g. Rizoma, LSL or Magura. The clamp base unit has a height of 20 mm from the base of the triple clamp to lower side of handlebar. Shown heights also indicate height from upper surface of triple clamps to lower side of handlebar. By using the additional available distance bushings almost all needed heights are possible. See accessories. Bolted with a thread in the bottom of the clamps, it is not necessary to align the clamps before installing the handlebar. Made of high grade aircraft aluminium, black or silver anodised. M10 bolts used for mounting to the triple clamp. Delivered bolts are 40 mm longer than height of ordered clamps. If you have choosen a height of e.g. 50 mm, the included bolts are 90 mm long. If you need different bolt length, see accessories tab. For individually needed distance bushings see accessories.

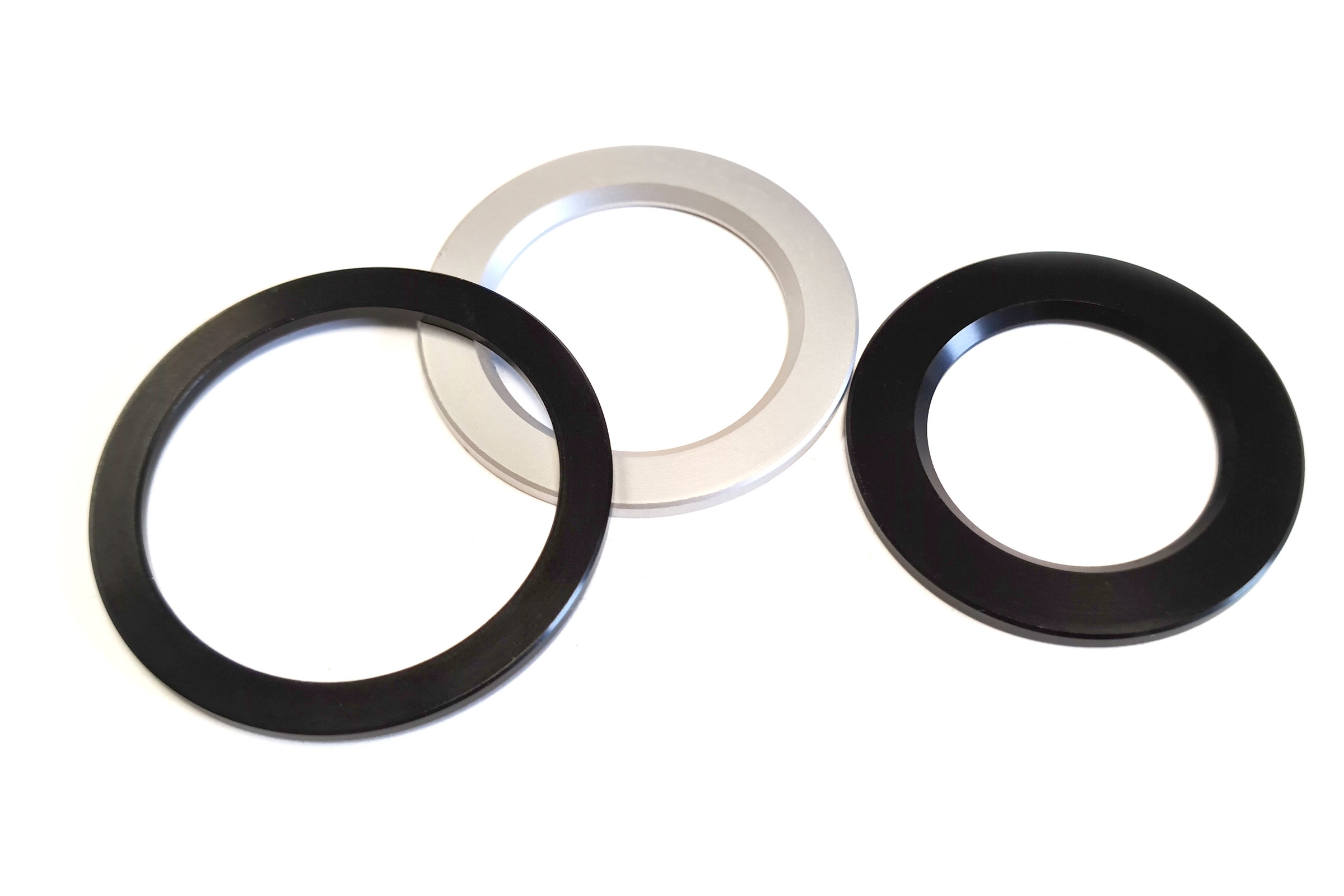

CNC machined washers for the lower steering head bearing. With these washers, which are placed under the lower steering head bearing, the free movement of the lower triple clamp in relation to the steering head can be ensured.   Dimensions:   outer diameter 40 mm, inner diameter 25 mm, thickness 2 mm outer diameter 45 mm, inner diameter 35 mm, thickness 2 mm   The surface is anodised for corrosion protection. Other dimensions on request.

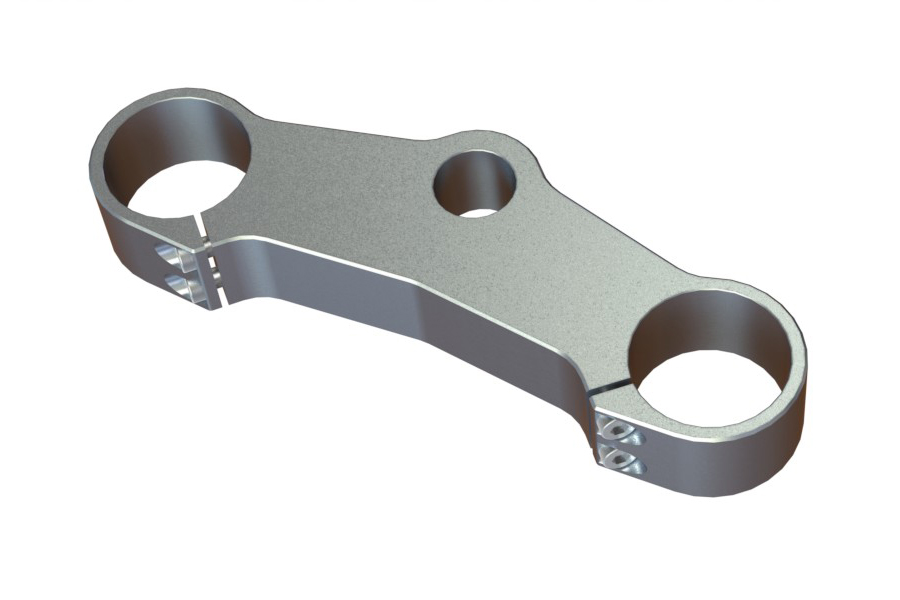

CNC-machined lower triple clamp made of high-strength aluminium, 40 mm strong with M8 2-fold clamping.   The high-quality finish and exclusive design of this Performanceparts triple clamp give your conversion an individual look.   The closed design on the top side allows the screw mounting of steering stops or headlight mounts. Milling on the underside of the component reduces the weight of the bridge to a minimum without affecting its strength. The noble design, adapted to the overall appearance of both classic and modern motorbikes, makes this triple clamp an eye-catcher on every machine.   On request, modifications are possible both in the design and in technical features such as side openings on the fork leg clamps or individual headlight mounts. Please contact us.   The original steering head tube can still be used if necessary. Alternatively we offer aluminium head tubes. See accessories tab. Older steel steering head tubes are not suitable for combination with aluminium triple clamps, as there is a risk of contact corrosion.   We manufacture the triple clamps exclusively from high-strength aluminium 7075 T6 exactly according to your wishes. Changes to the design are possible. A surface finish (anodising) or powder coating can be offered in various colours.   Please enter your desired dimensional ranges for standpipe spacing, offset and standpipe diameter in the design template. Under the DOCUMENTS tab you will find a drawing (PDF) to enter the desired dimensions. The exact dimensions and any special requests will be clarified after receipt of the order.   Suitable steering tubes, steering stops or handlebar clamps see tab 'ACCESSORIES'.   Delivery incl. TÜV parts certificate for individual registration according to §19.2 or 19.3.

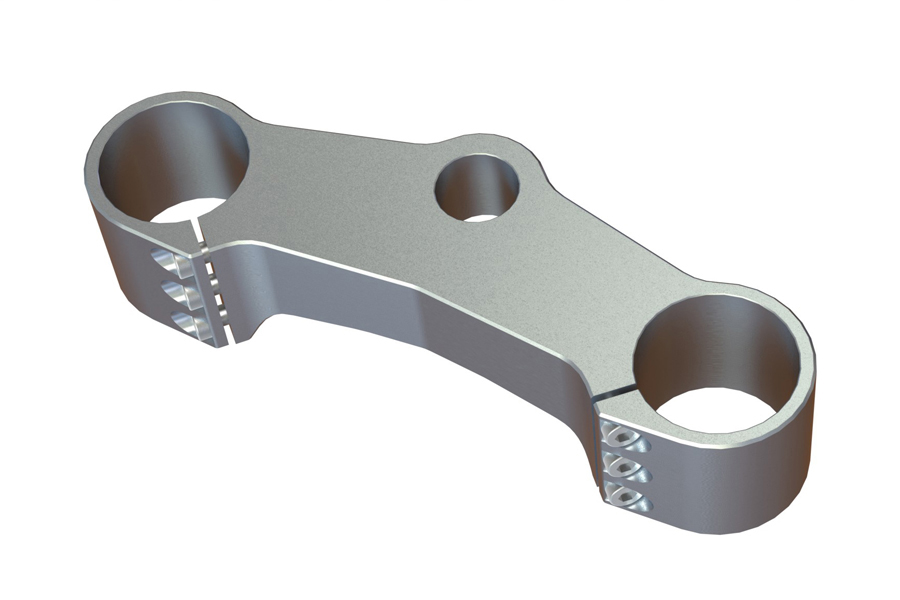

CNC-machined lower triple clamp made of high-strength aluminium, 60 mm strong with M8 3-fold clamping.   The high-quality finish and exclusive design of this Performanceparts triple clamp give your conversion an individual look.   The closed design on the top side allows the screw mounting of steering stops or headlight mounts. Milling on the underside of the component reduces the weight of the bridge to a minimum without affecting its strength. The noble design, adapted to the overall appearance of both classic and modern motorbikes, makes this triple clamp an eye-catcher on every machine.   On request, modifications are possible both in the design and in technical features such as side openings on the fork leg clamps or individual headlight mounts. Please contact us.   The original steering head tube can still be used if necessary. Alternatively we offer aluminium head tubes. See accessories tab. Older steel steering head tubes are not suitable for combination with aluminium triple clamps, as there is a risk of contact corrosion.   We manufacture the triple clamps exclusively from high-strength aluminium 7075 T6 exactly according to your wishes. Changes to the design are possible. A surface finish (anodising) or powder coating can be offered in various colours.   Please enter your desired dimensional ranges for standpipe spacing, offset and standpipe diameter in the design template. Under the DOCUMENTS tab you will find a drawing (PDF) to enter the desired dimensions. The exact dimensions and any special requests will be clarified after receipt of the order.   Suitable steering tubes, steering stops or handlebar clamps see tab 'ACCESSORIES'.   Delivery incl. TÜV parts certificate for individual registration according to §19.2 or 19.3.

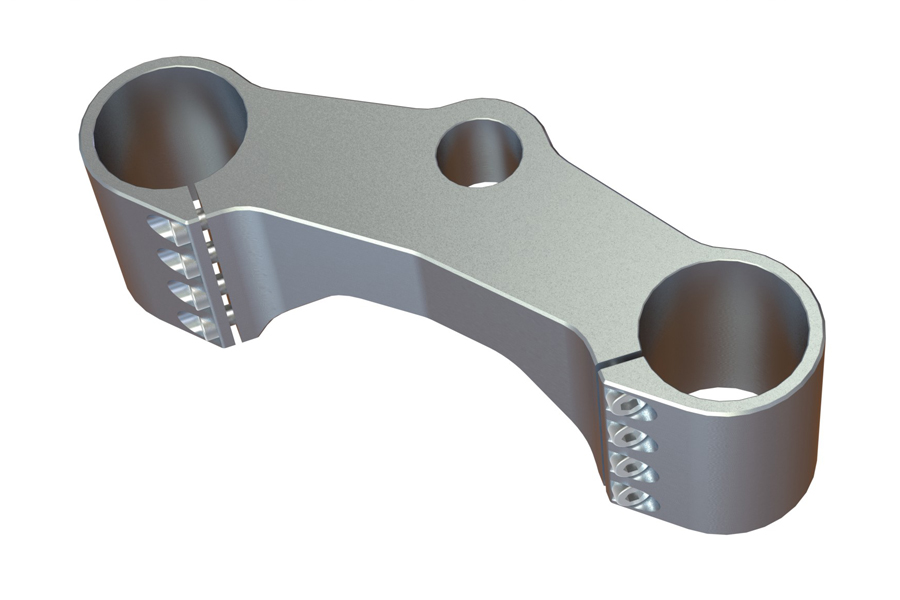

CNC-machined lower triple clamp made of high-strength aluminium, 80 mm strong with M8 4-fold clamping.   The high-quality finish and exclusive design of this Performanceparts triple clamp give your conversion an individual look.   The closed design on the top side allows the screw mounting of steering stops or headlight mounts. Milling on the underside of the component reduces the weight of the bridge to a minimum without affecting its strength. The noble design, adapted to the overall appearance of both classic and modern motorbikes, makes this triple clamp an eye-catcher on every machine.   On request, modifications are possible both in the design and in technical features such as side openings on the fork leg clamps or individual headlight mounts. Please contact us.   The original steering head tube can still be used if necessary. Alternatively we offer aluminium head tubes. See accessories tab. Older steel steering head tubes are not suitable for combination with aluminium triple clamps, as there is a risk of contact corrosion.   We manufacture the triple clamps exclusively from high-strength aluminium 7075 T6 exactly according to your wishes. Changes to the design are possible. A surface finish (anodising) or powder coating can be offered in various colours.   Please enter your desired dimensional ranges for standpipe spacing, offset and standpipe diameter in the design template. Under the DOCUMENTS tab you will find a drawing (PDF) to enter the desired dimensions. The exact dimensions and any special requests will be clarified after receipt of the order.   Suitable steering tubes, steering stops or handlebar clamps see tab 'ACCESSORIES'.   Delivery incl. TÜV parts certificate for individual registration according to §19.2 or 19.3.

Distance bushing in various heights for our cnc machined handlebar clamps. The fully cnc machined bushing is avaible from 10-50mm height. By using this spacer in combination with our handlebar clamps almost all heights are possible. Made of high grade aircraft aluminium, black or silver anodised. Delivered without bolts. For bolts see accessories. To be used only with our cnc machined handlebar clamps or triple clamp sets. See accessories. Price per piece. For mounting two pieces needed.

Steering head screw with M18x1,5 made from high grade aircraft aluminium. Made in the design of the 996 steering head bolt. You need a Ducati tool or have a look to our special tool 40-0563 at the accessories. Fits e.g. with then Ducati Supersport and Monster Carburettor model 1999 and older Avaiable in various anodised colors. Fits e.g.: 1999 Ducati Monster 750 1999 Ducati Monster 900 1998 Ducati Monster 750 1998 Ducati Monster 900 1998 Ducati Supersport 750 1998 Ducati Supersport 900 1997 Ducati Monster 750 1997 Ducati Monster 900 1997 Ducati Supersport 750 1997 Ducati Supersport 900 1996 Ducati Monster 900 1996 Ducati Supersport 750 1996 Ducati Supersport 900 1995 Ducati Monster 900 1995 Ducati Supersport 750 1995 Ducati Supersport 900 1994 Ducati Monster 900 1994 Ducati Supersport 750 1994 Ducati Supersport 900 1993 Ducati Monster 900 1993 Ducati Supersport 750 1993 Ducati Supersport 900 1992 Ducati Supersport 750 1992 Ducati Supersport 900 1991 Ducati Supersport 750 1991 Ducati Supersport 900 1990 Ducati Supersport 750

Steering head bolt for Ducati Monster and SuperSport models. Made from high grade aircraft aluminium. Avaibable in different colors with M20x1,5 thread for DUCATI Supersport SSie, etc. 1999 onwards. You will need a Ducati tool or have a look to our special tool 40-0563 at the accessories. Surface protected by high quality anodisation in different colours. Fits e.g.: 2007 Ducati Supersport 800 ie 2006 Ducati Supersport 1000 ie 2006 Ducati Supersport 800 ie 2005 Ducati Supersport 1000 ie 2005 Ducati Supersport 800 ie 2004 Ducati Supersport 1000 ie 2004 Ducati Supersport 800 ie 2003 Ducati Supersport 1000 ie 2003 Ducati Supersport 620 ie 2003 Ducati Supersport 800 ie 2002 Ducati Supersport 750 ie 2001 Ducati Supersport 750 ie 2001 Ducati Supersport 900 ie 2000 Ducati Supersport 750 ie 2000 Ducati Supersport 900 ie 1999 Ducati Supersport 750 ie 1999 Ducati Supersport 900 ie

Steering head bolt  made from high grade aircraft aluminium complete with tool 40-0563. Same as 40-0360, but in a set with new tool. Avaibable in different colors with M20x1,5 thread for DUCATI Supersport SSie, etc. up to 2001. Fits e.g.: 2007 Ducati Supersport 800 ie 2006 Ducati Supersport 1000 ie 2006 Ducati Supersport 800 ie 2005 Ducati Supersport 1000 ie 2005 Ducati Supersport 800 ie 2004 Ducati Supersport 1000 ie 2004 Ducati Supersport 800 ie 2003 Ducati Supersport 1000 ie 2003 Ducati Supersport 620 ie 2003 Ducati Supersport 800 ie 2002 Ducati Supersport 750 ie 2001 Ducati Monster 600 2001 Ducati Monster 750 2001 Ducati Supersport 750 ie 2001 Ducati Supersport 900 ie 2000 Ducati Monster 750 2000 Ducati Supersport 750 ie 2000 Ducati Supersport 900 ie 1999 Ducati Monster 750 1999 Ducati Monster 900 1999 Ducati Supersport 750 ie 1999 Ducati Supersport 900 ie 1998 Ducati Monster 750 1998 Ducati Monster 900 1998 Ducati Supersport 750 1998 Ducati Supersport 900 1997 Ducati Monster 750 1997 Ducati Monster 900 1997 Ducati Supersport 750 1997 Ducati Supersport 900 1996 Ducati Monster 900 1996 Ducati Supersport 750 1996 Ducati Supersport 900 1995 Ducati Monster 900 1995 Ducati Supersport 750 1995 Ducati Supersport 900 1994 Ducati Monster 900 1994 Ducati Supersport 750 1994 Ducati Supersport 900 1993 Ducati Monster 900 1993 Ducati Supersport 750 1993 Ducati Supersport 900 1992 Ducati Supersport 750 1992 Ducati Supersport 900 1991 Ducati Supersport 750 1991 Ducati Supersport 900 1990 Ducati Supersport 750
