High Fender Adapter / Brake line distributor, Aluminium, cnc machined Yamaha Tenere 700

Lower brake line guide to mount at lower end of fork tube.   Our plastic brake line guide helps to neatly route the brake lines when using a high mudguard. The lines are safely guided so that the risk of "snagging" is minimised. The guide can be slid over the installed fork leg, disassembly of the complete fork is not necessary. The part for the brake line can be clipped open, so routing the brake hose is very easy. Clamping Diameter 53 mm   Price per piece.

Upper brake line guide to mount below lower triple clamp.   Our plastic brake line guide helps to neatly route the brake lines when using a high mudguard. The lines are safely guided so that the risk of "snagging" is minimised. The guide can be slid over the installed fork leg, disassembly of the complete fork is not necessary. The part for the brake line can be clipped open, so routing the brake hose is very easy. Clamping Diameter 56 mm   Price per piece.

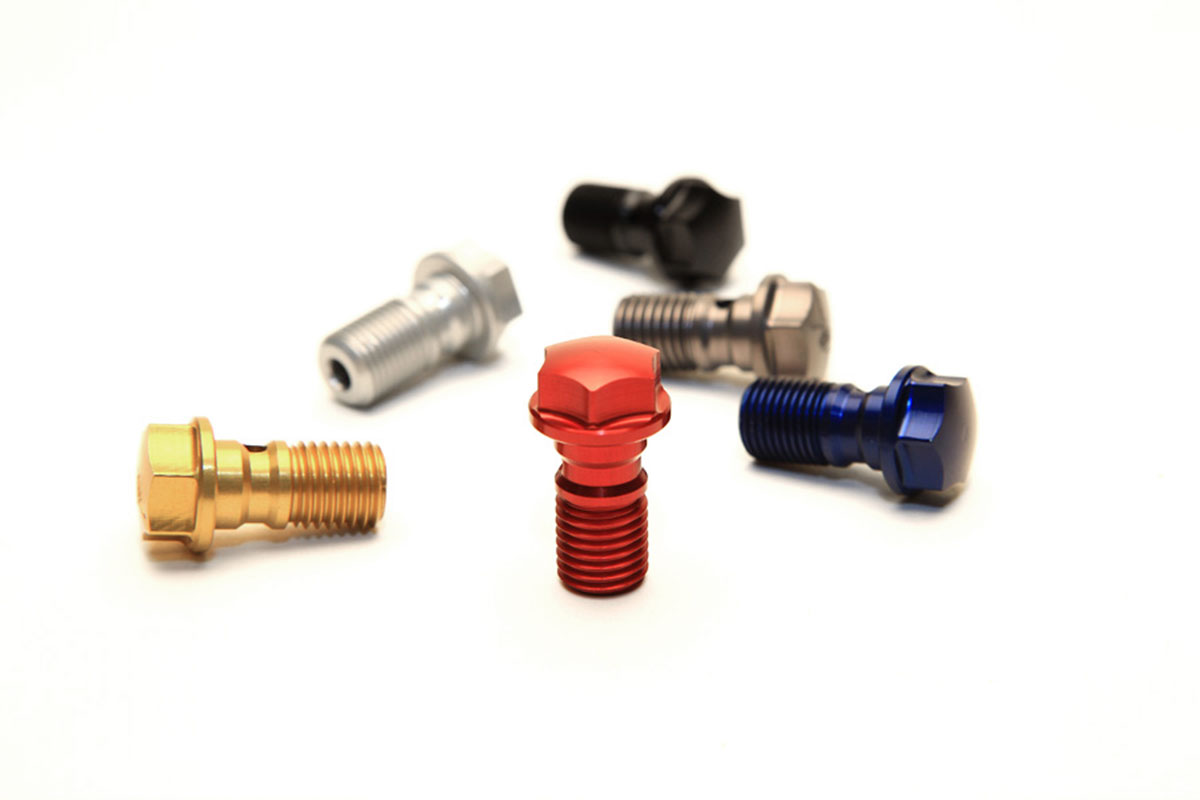

Hydraulic (bleeding) bolts made from high grade aircraft aluminium 7075 T6   Very lightweight. Made from high grade aircraft aluminium. For clutch and brake master and slave cylinder or brake calipers High quality cnc machined. Avaiable in different anodised colors.   Thread: M10x1 Length: 20 mm Material: Aluminum 7075 T6   Fits e.g. for : Yamaha XT-660Z brake calipers Ducati 748 - 916 - 996 - 998 - 848 - 1098 - 1198 a lot BREMBO Calipers and brake / clutch pumps

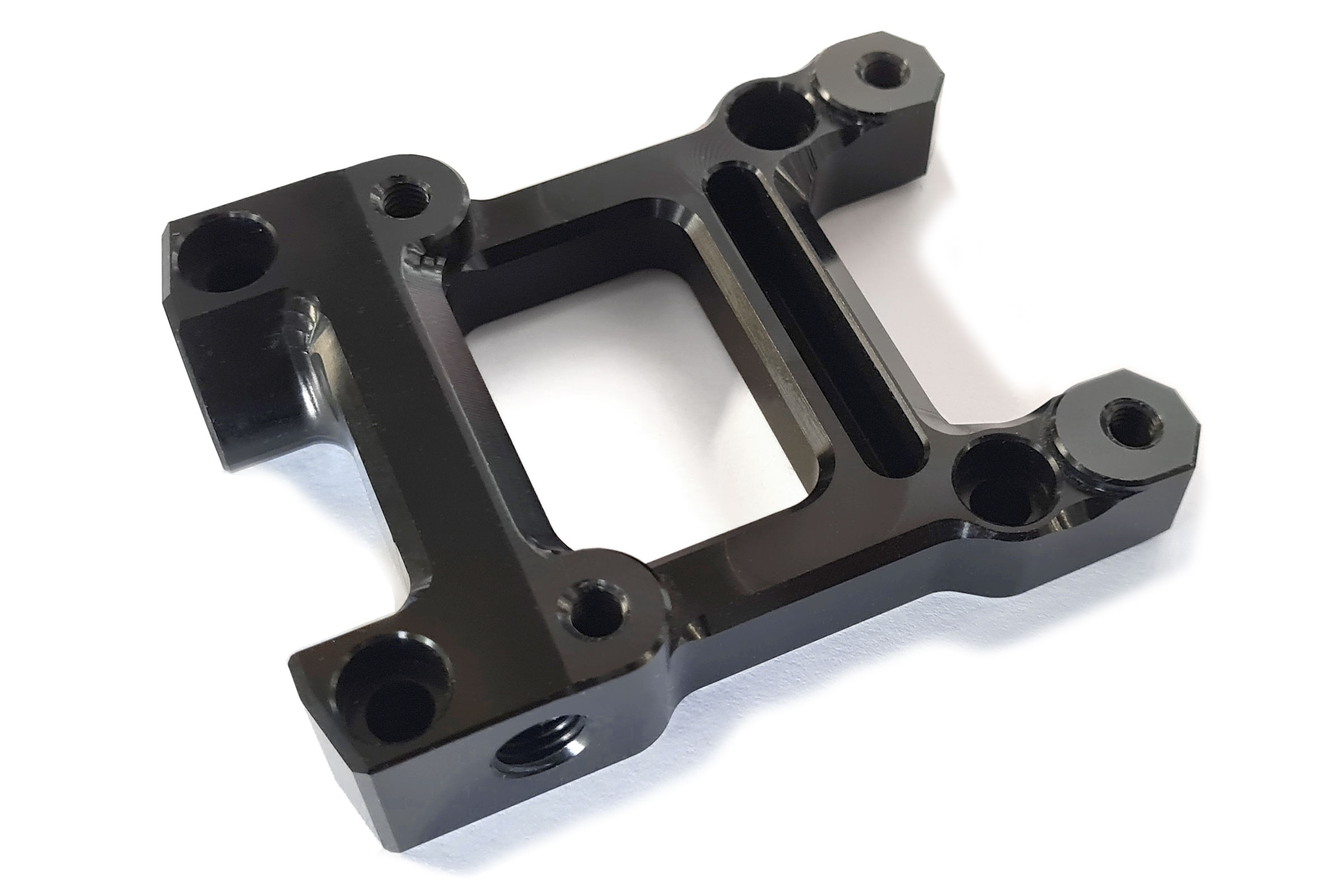

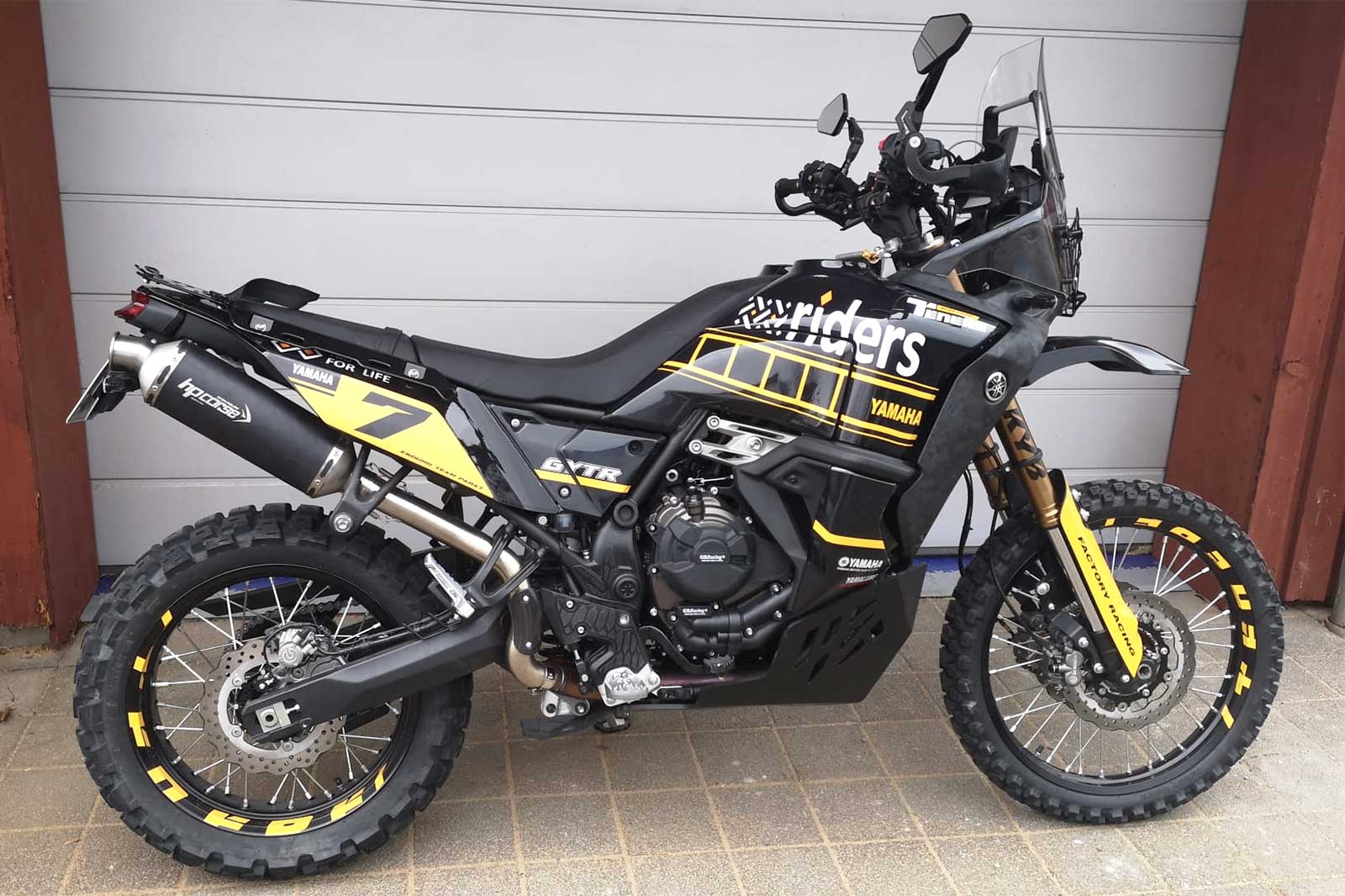

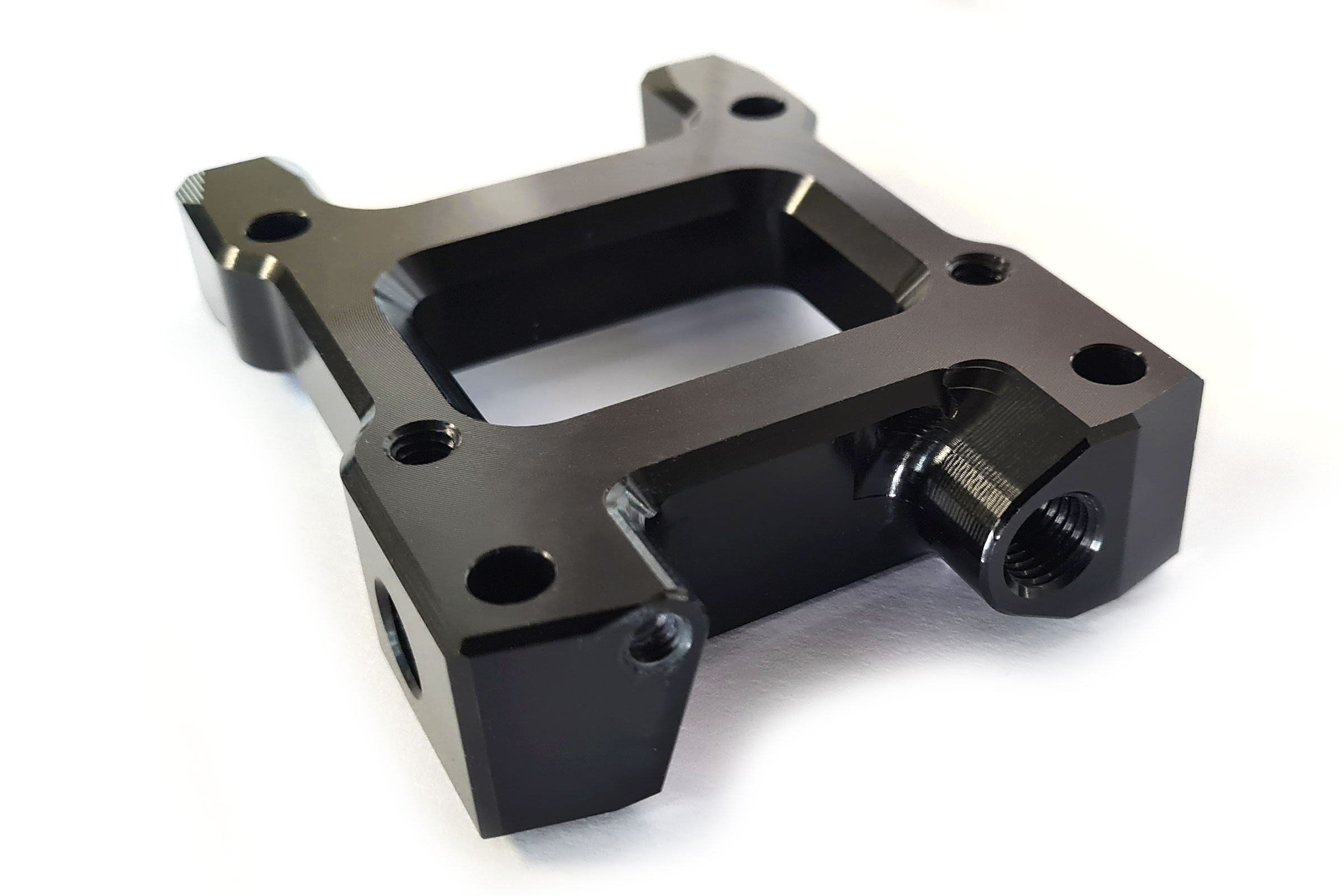

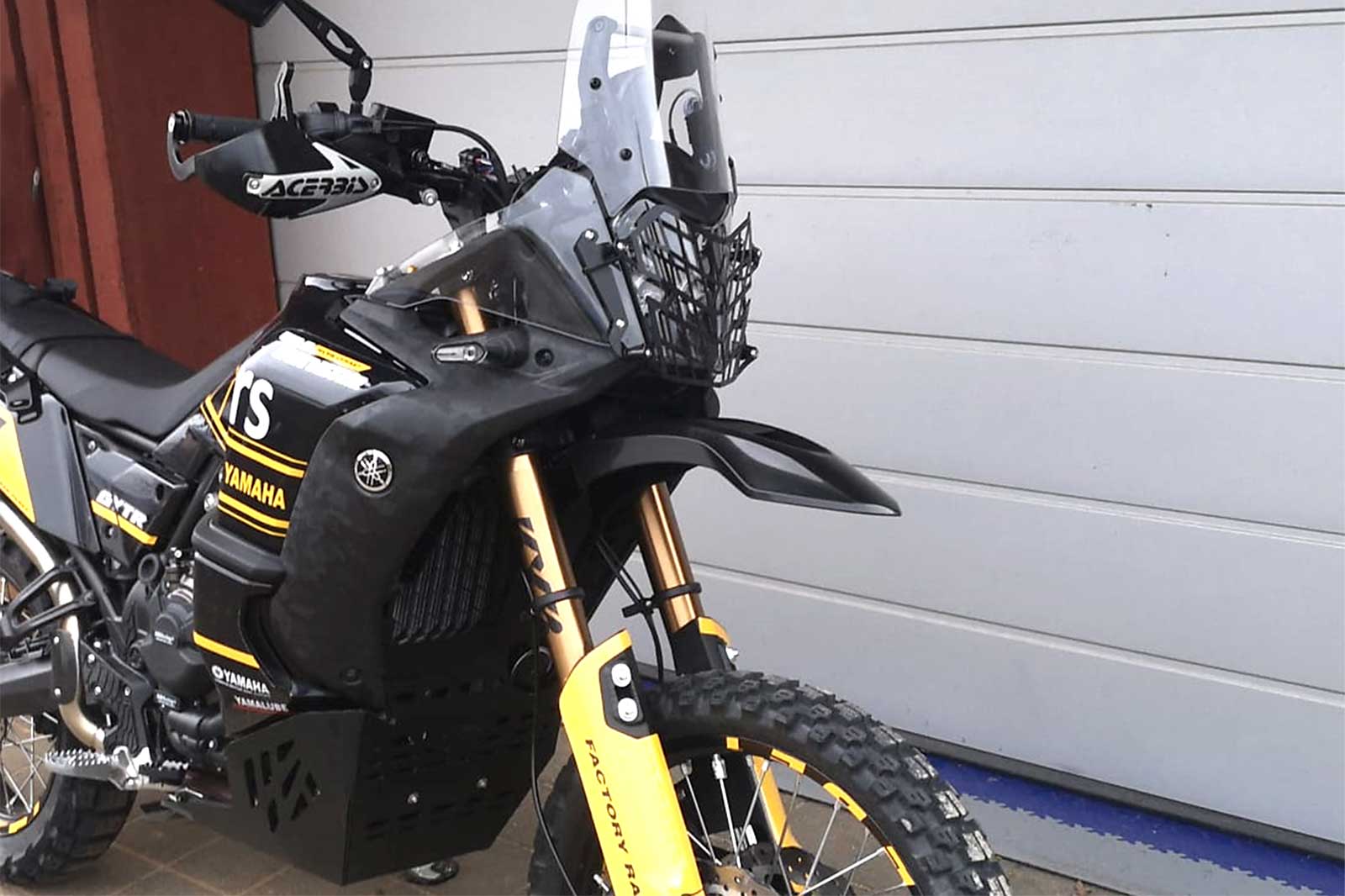

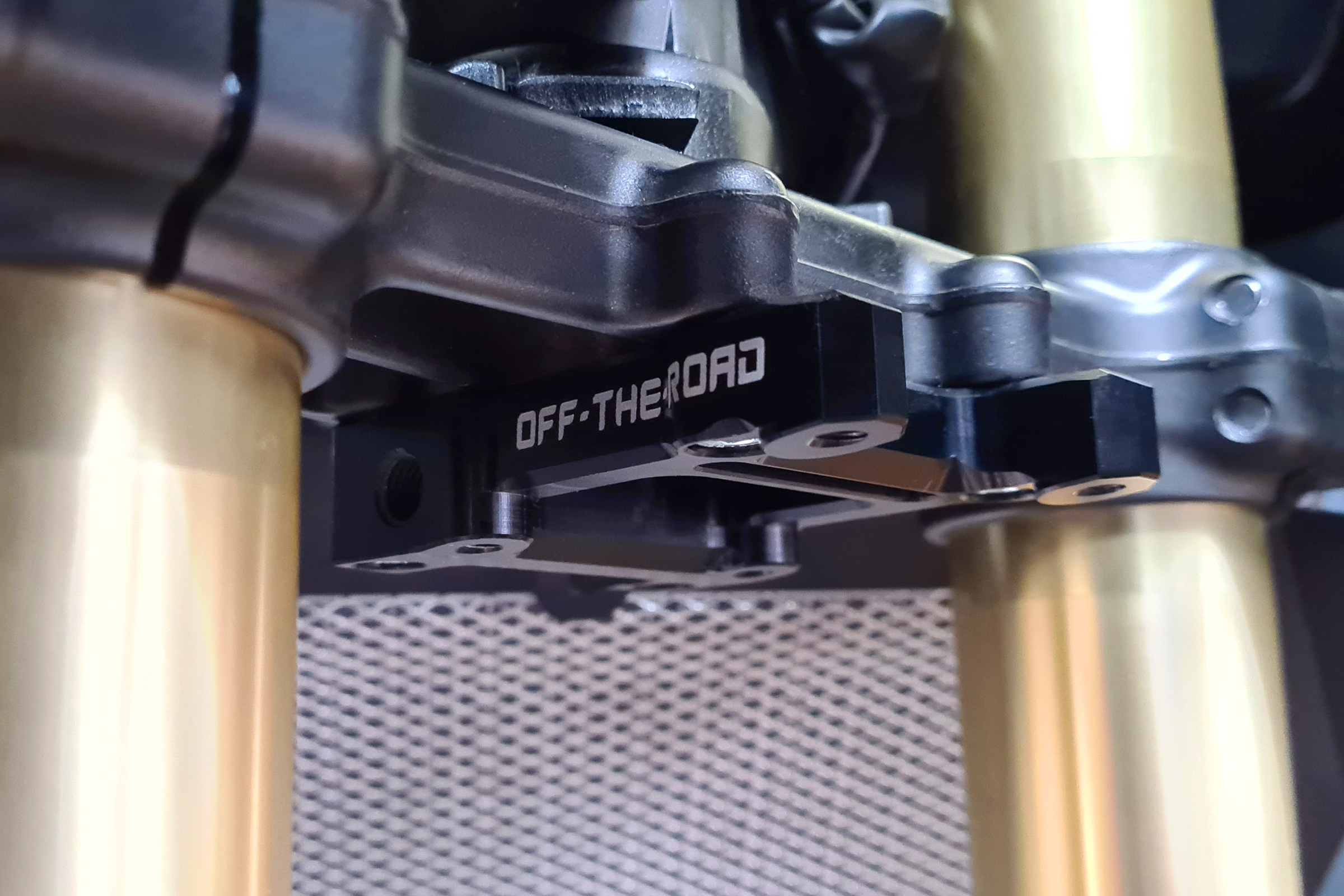

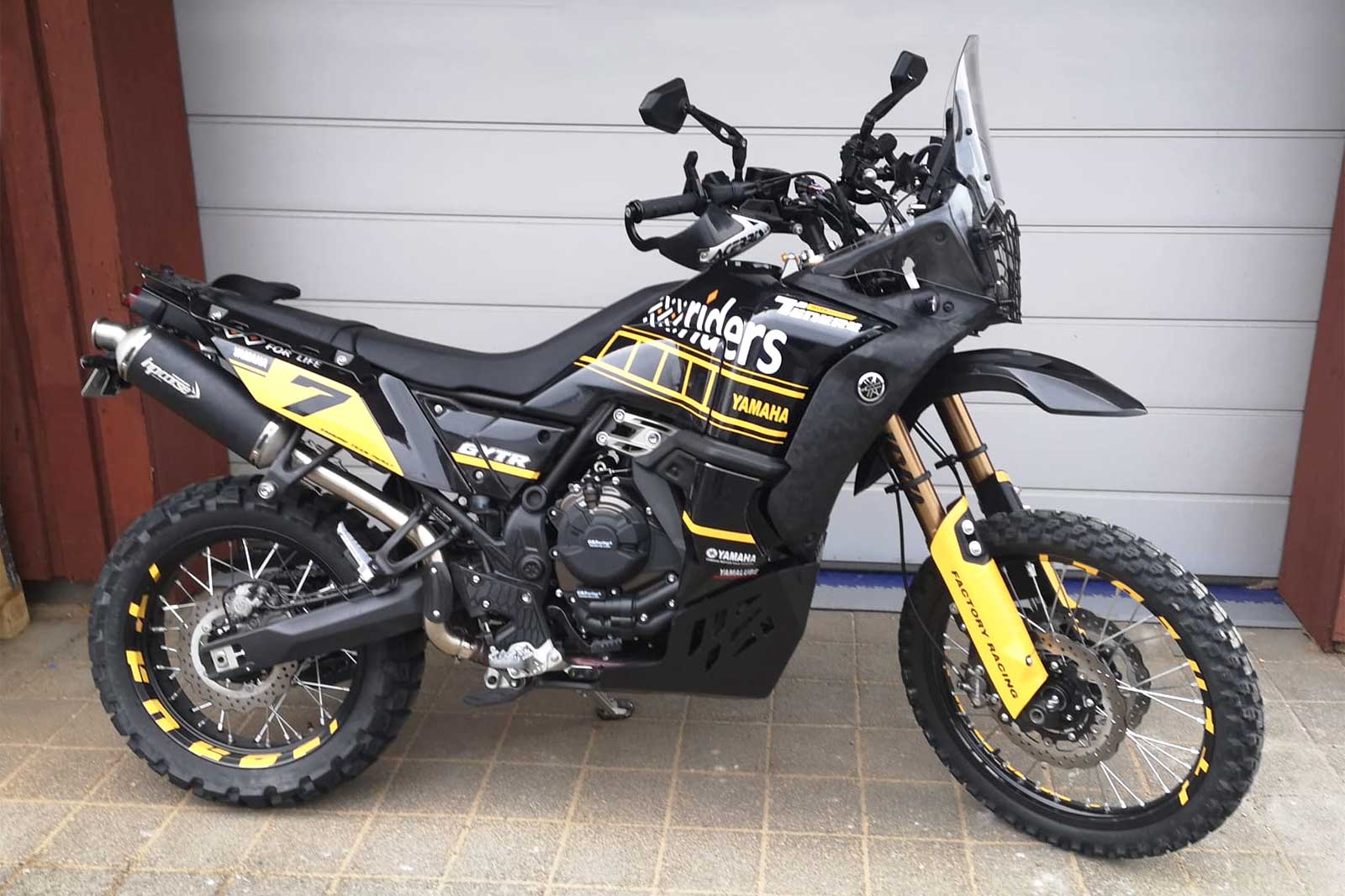

Machined aluminium adapter for mounting a high mudguard / rally fender with a matching brake line kit. The adapter is bolted to the lower triple clamp and relocated the position a high mudguard slightly in the direction of travel. This gives you more space at the rear end of the fender, so this does not touch the radiator. The fender mounting area is also tilted slightly to give the Tenere 700 a more pleasing appearance. Three M10x1.25 threads allow to use this adapter also as a mounting part / splitter for the brake lines. Three brake lines can be screwed on. One line coming from the ABS module is screwed on at the rear of the distributor, two lines run from left / right side of distributor down the left and right of the fork leg to the two brake calipers.   milled aluminium adapter black anodised 3 threads for M10x1.00 banjo bolts 4 M6 threads on the underside needed brake line kit and Banjo bolts not included     Scope of delivery:   1 x aluminium adapter Mounting kit Instructions   Please note: Needed banjo bolts M10x1.0 not included! Necessary if you want to use your own brake lines. If you use our brake line kit, this Banjo bolts are not needed. When mounting with our brake line kit, at least 1 banjo bolt M10x1.25 is required for the right brake caliper, as Yamaha installs a double banjo bolt there from factory. See accessories.   Fits all:   Yamaha Tenere 700 2019 onwards Yamaha Tenere 700 Rally 2020 onwards Yamaha Tenere 700 World Raid 2022 onwards Yamaha Tenere 700 Extreme 2023 onwards Yamaha Tenere 700 Explore 2023 onwards

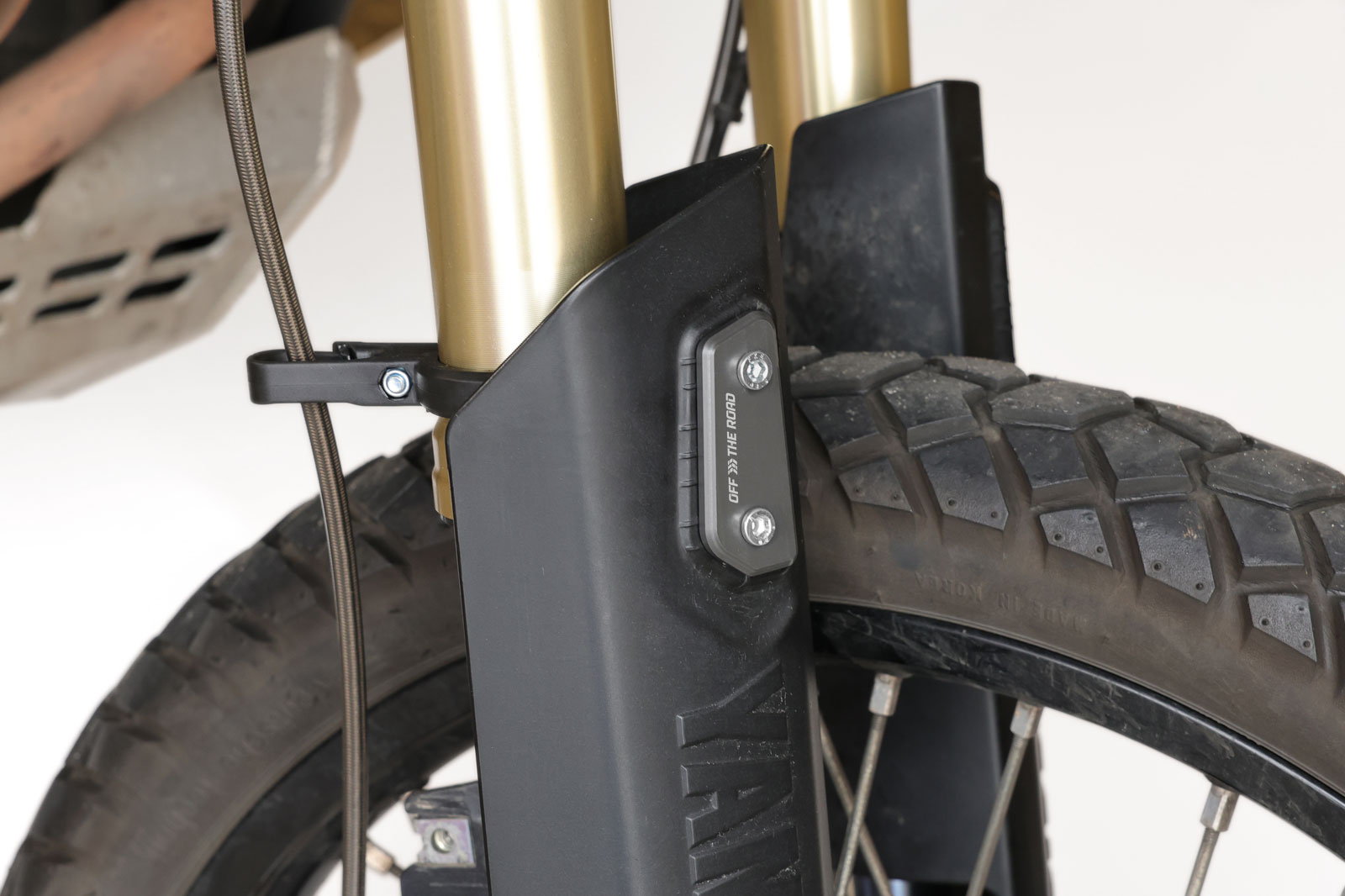

The beautifully shaped and high-quality CNC-milled aluminum covers neatly close the open mounting holes. When removing the original lower fender, the holes remain open and spoil the beautiful conversion to a high rally fender.   The stylish, titanium-coloured anodized covers made of 7075 T6 aluminium complete every high-fender conversion.   Scope of delivery: 1 x cnc machined, cover, right side, anodiesed 1 x cnc machined, cover, left side, anodiesed 4 x bolt   Fits for all: Yamaha Tenere 700 2019 onwards Yamaha Tenere 700 Rally 2021 onwards Yamaha Tenere 700 World Raid 2022 onwards Yamaha Tenere 700 World Rally 2023 onwards Yamaha Tenere 700 Extreme 2023 onwards Yamaha Tenere 700 Explore 2023 onwards

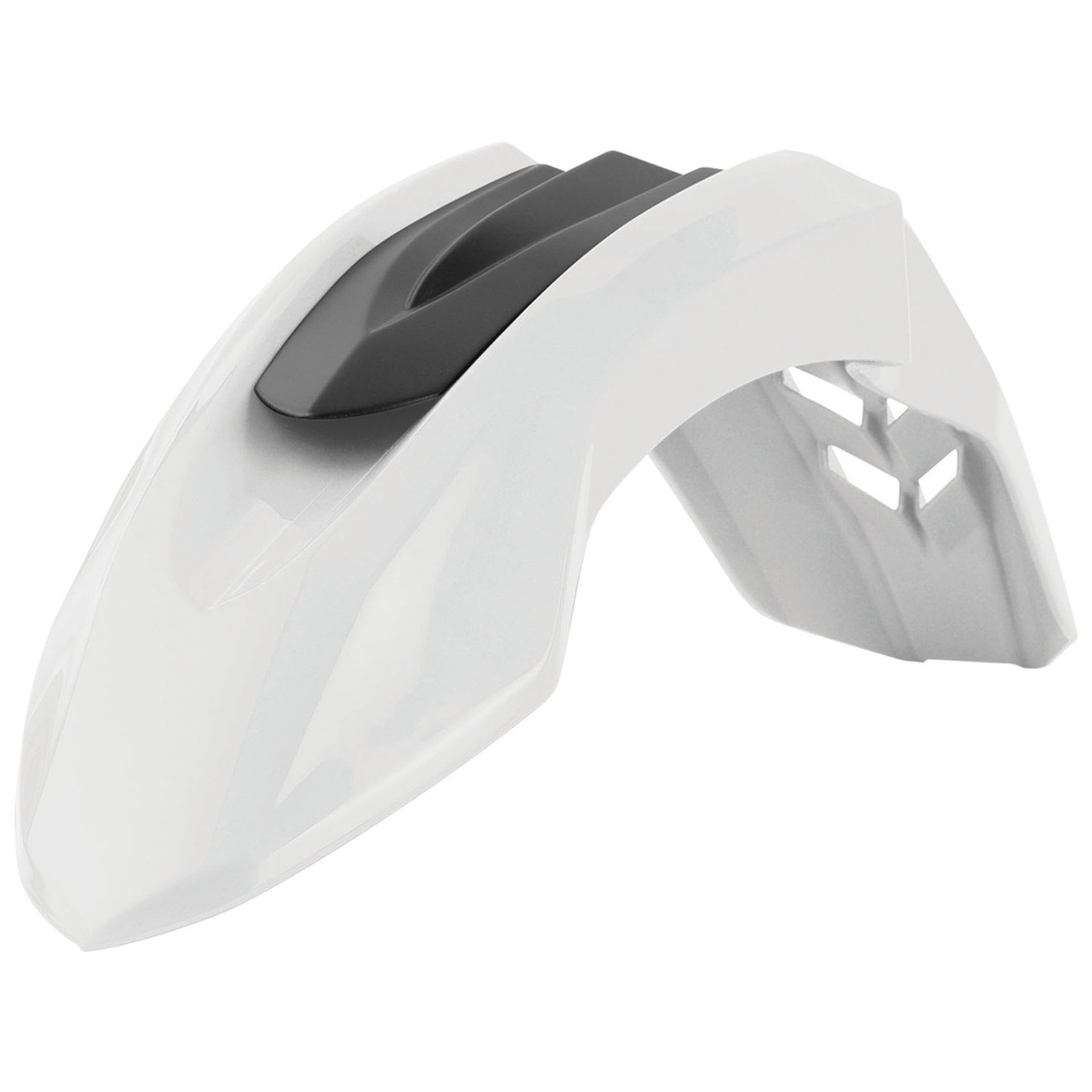

Front Fender, High Version, 2-coloured
